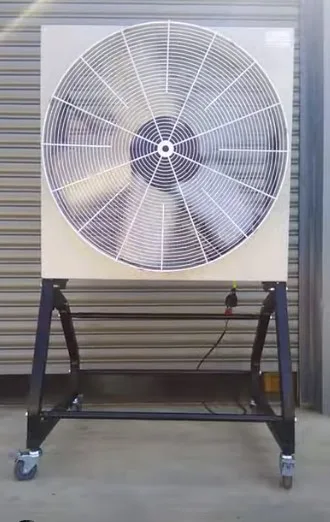

B32-Industrial Exhaust Fan
Stainless steel exhaust fan
Steel exhaust fan
B32-Specification
| MODEL NO. | B32WSS | B32MSS | B32VSS | B32W | B32M | B32V |
| TYPE | Wall-mounted | Portable | Standing | Wall-mounted | Portable | Standing |
| MATERIAL | Stainless Steel | Stainless Steel | Stainless Steel | Steel | Steel | Steel |
| BLADE DIAMETER | 32 inch | 32 inch | 32 inch | 32 inch | 32 inch | 32 inch |
| MOTOR | 0.5HP | 0.5HP | 0.5HP | 0.5HP | 0.5HP | 0.5HP |
| AIR FLOW (Max.) | 10000CFM | 10000CFM | 10000CFM | 10000CFM | 10000CFM | 10000CFM |
| DRIVE | Belt | Belt | Belt | Belt | Belt | Belt |
| VOLTAGE | 3φ,220V/380V | 3φ,220V/380V | 3φ,220V/380V | 3φ,220V/380V | 3φ,220V/380V | 3φ,220V/380V |
| Customized | Customized | Customized | Customized | Customized | Customized | |
| NOISE | 80dB | 80dB | 80dB | 80dB | 80dB | 80dB |
| WEIGHT | 116lbs | 134lbs | 154lbs | 116lbs | 134lbs | 154lbs |
| DIMENSIONS | 91X37X91 cm | 91X50X106 cm | 91X69X161 cm | 91X37X91cm | 91X50X106cm | 91X69X161cm |

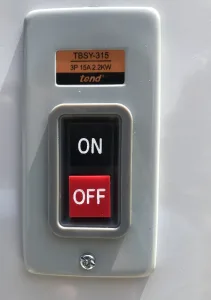

B32-Parts
Product specification may change, and the company’s specifications at the time of quotation shall prevail.
Product colors and styles are subject to the company’s latest styles, and pictures are for reference only.
